Parts overview

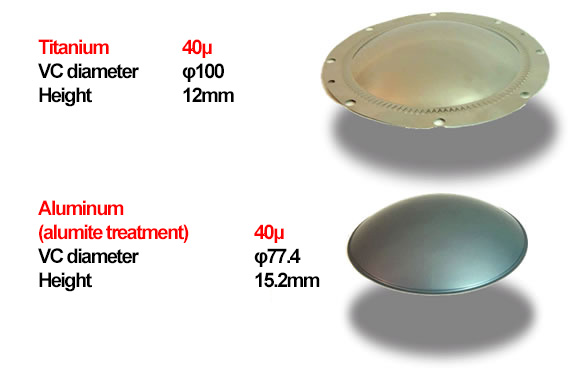

Metal diaphragm (for compression driver)

gun01

Edge shape can be tangential, roll, or special.

We lead the industry in shaping precision, including edges

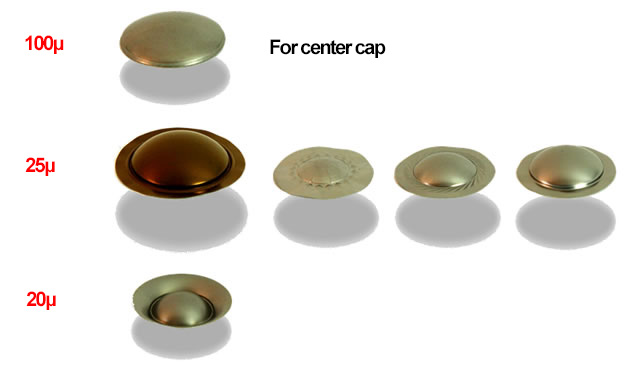

Metal diaphragm (titanium)

gun02

Complex shapes can be formed

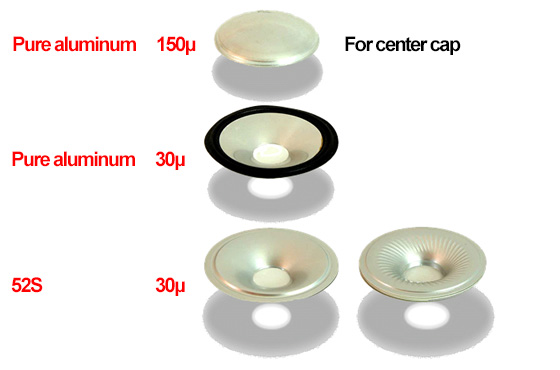

Metal diaphragm (Aluminum)

gun03

Complex shapes can be formed

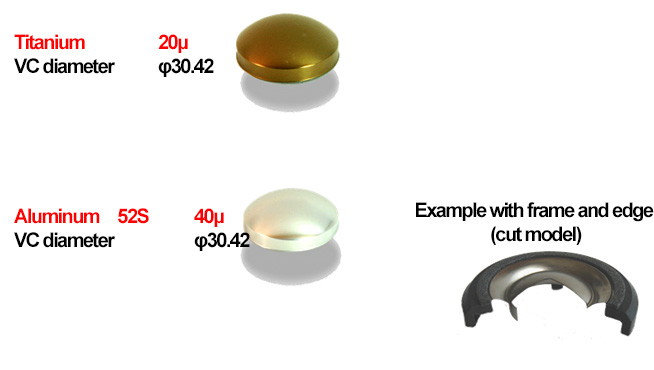

Metal diaphragm (Series winding support)

gun04

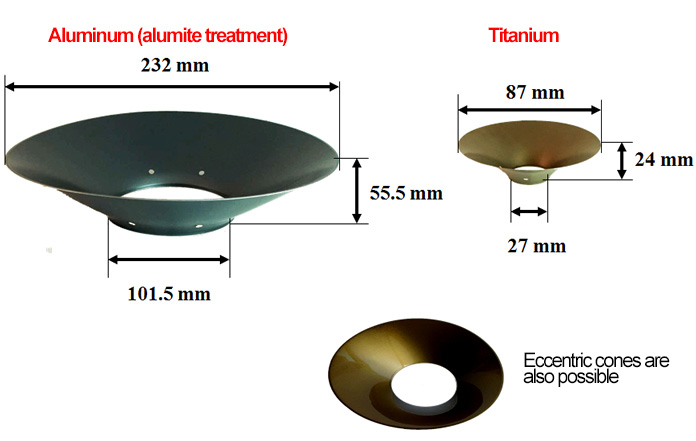

Metal diaphragm (Cone type, deep drawing)

gun05

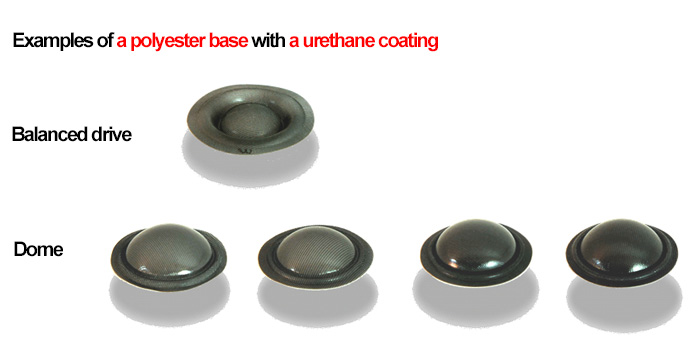

Cloth diaphragms

gun06

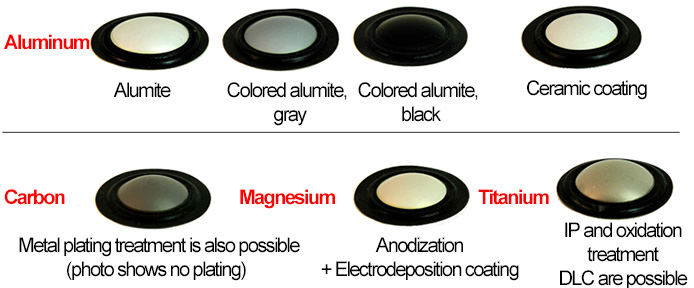

Typical types of surface treatment

gun07

Edge Material Coating or treatment
Polyester
silk
titanium
aluminum		 Coating or treatment
Urethane, acrylic, melamine, rubber, phenol coating, phenol coating
IP (Ion Plating), oxidation treatment DLC (Diamond Like Carbon)
Ceramic coating



*For the edges in the photos, the material is polyester with phenol coating.

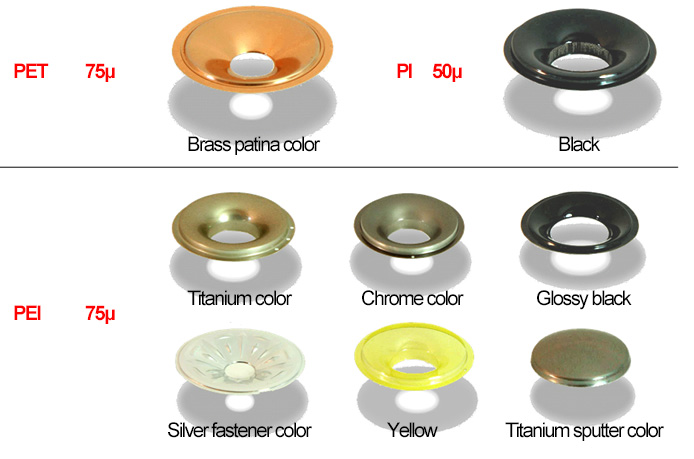

Film diaphragms

gun08

*We offer a wide range of colors; the above are some examples

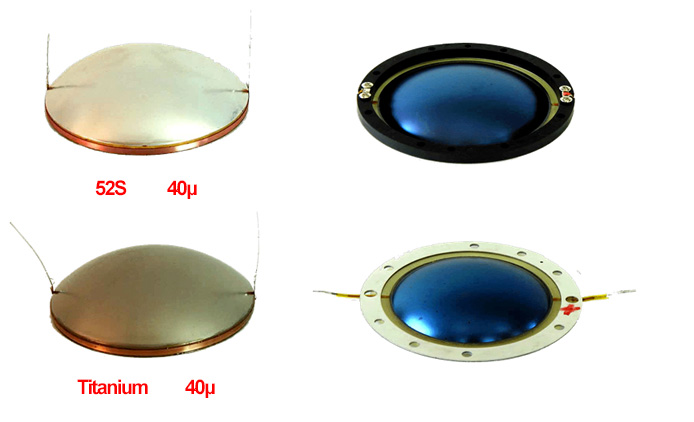

Diaphragm ASSY 1 (for compression driver)

gun09

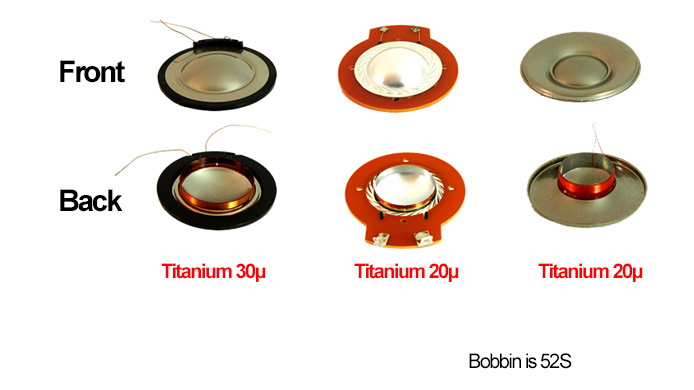

Diaphragm ASSY 2 (for tweeter)

gun10

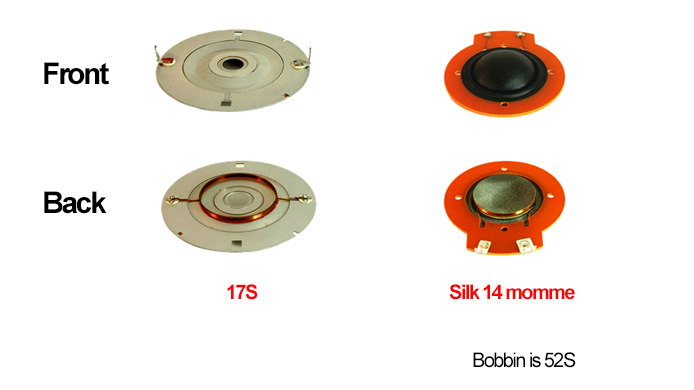

Diaphragm ASSY 3 (for tweeter)

gun11

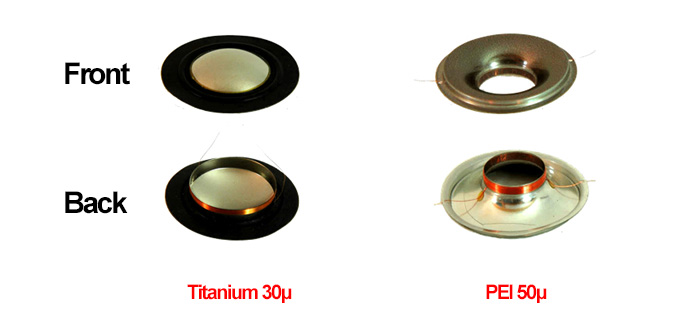

Diaphragm ASSY 4 (for tweeter, series winding)

gun13

Royal Sangyo Co., Ltd.Royal Sangyo Co., Ltd.

We respond to a full range for customer needs, from speaker development and design, to manufacturing.

Head Office Factory:
〒336-0932 Nakao 945-2, Midori-ku, Saitama-shi, Saitama, Japan
TEL:+81-48-810-1313 FAX:+81-48-874-3679

Kofu Development Center:
〒400-0112 Natori 298-4, Kai-shi, Yamanashi, Japan
TEL:+81-55-236-9393 FAX:+81-55-236-9390
Business description

Development, design, and manufacturing of speaker units
<Speaker-related parts>
Aluminum/Titanium cap manufacturing, aluminum/titanium diaphragm manufacturing, voice coil assembly
<Units>
Car speakers, audio speakers, TV speakers
